ROHS SC APC Fiber Optic Fast Connector Apply For FTTH

Hangzhou Junpu Optoelectronic Equipment Co., Ltd.
Contact Now

ROHS SC APC Fiber Optic Fast Connector Apply For FTTH

  • 1
  • 2
  • 3

Brand Name : JUNPU

Model Number : Fiber Optic Connector

Certification : ROHS CE CCC

Place of Origin : China

MOQ : 10 Piece

Price : Negotiation

Payment Terms : T/T, Western Union, Credit Card Via Alibaba

Delivery Time : 1 ~ 10 Working days based on quantity

Packaging Details : Standard Strong Carton Box

Insertion Loss : ≤ 0.3 dB

Return Loss : ≥ 45dB

Tensile strength : F>50N

Operating Temperature : -20 ~ +75℃

Modle : Fiber Optic Connector

Certificate : ROHS CE CCC

Contact Now

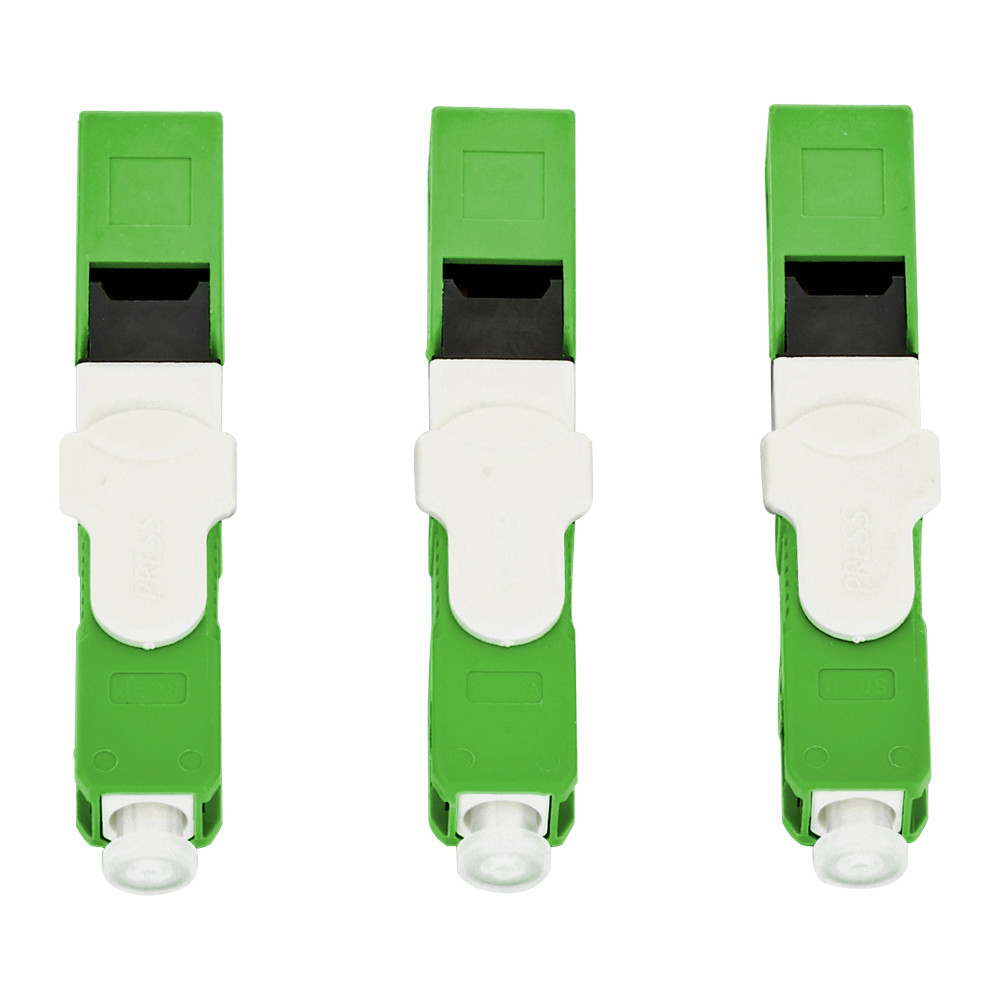

Fiber Optic Fast Connector Quick Assembly, Sc Apc Fast Connector:



Features:

Quick Assembly SC connector can provide quick and easy terminations of fibers in the field.

 It allows the installer  to terminate and make connection in minutes at equipment and fiber patch panels.

 This connector system with features of high installation quality, high success rate and high reliability.

 Applicable to 2*3,2*1.6 cables.



ROHS SC APC Fiber Optic Fast Connector Apply For FTTHROHS SC APC Fiber Optic Fast Connector Apply For FTTH



  Datasheet:

Parameters Value   Parameters Value
Insertion Loss ≤ 0.3 dB   Repeatability (500 Mating Times) ΔI.L. ≤ 0.3 dB
Return Loss ≥ 45dB   Temperature cycle ΔI.L. ≤ 0.3 dB
Tensile strength F>50N   Vibration test ΔI.L. ≤ 0.3 dB
Operating Temperature -20 ~ +75   Flooding test ΔI.L. ≤ 0.3 dB
Storage Temperature -40 ~ +85   Tensile strength F>50N



















We sincerely invite you to send us an inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You!
